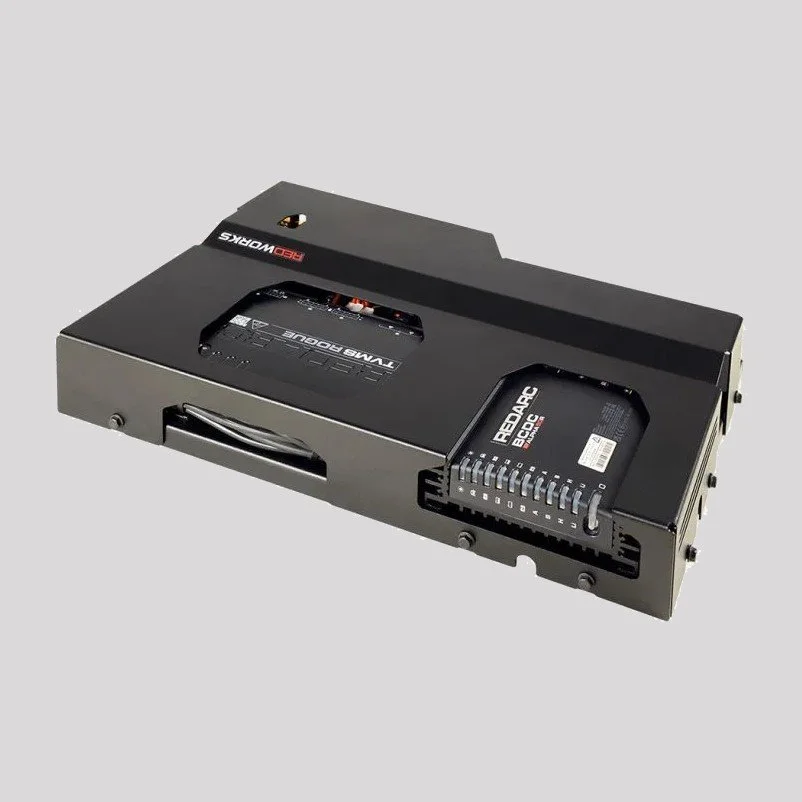

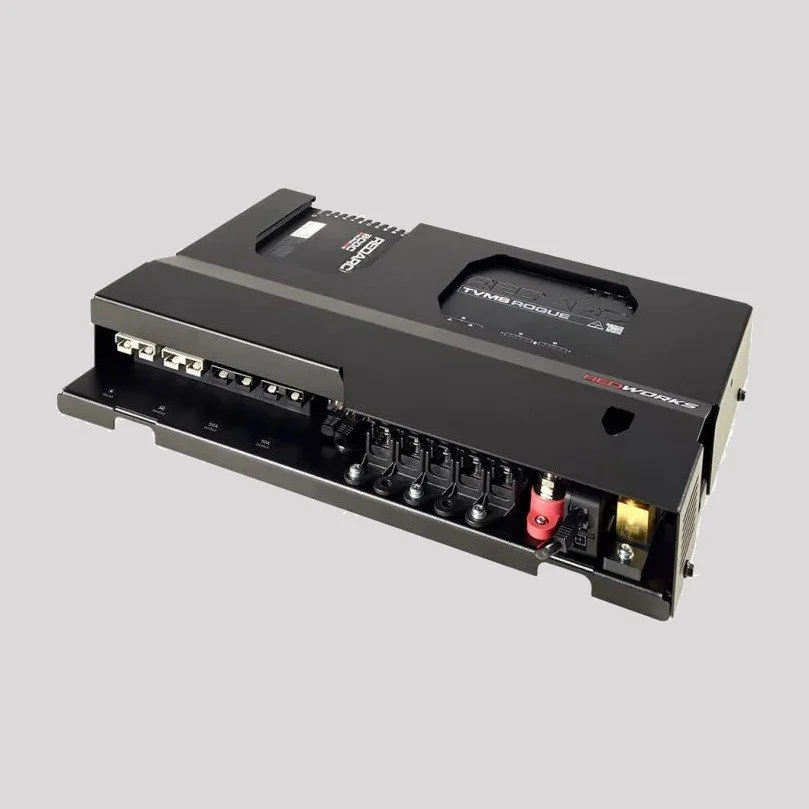

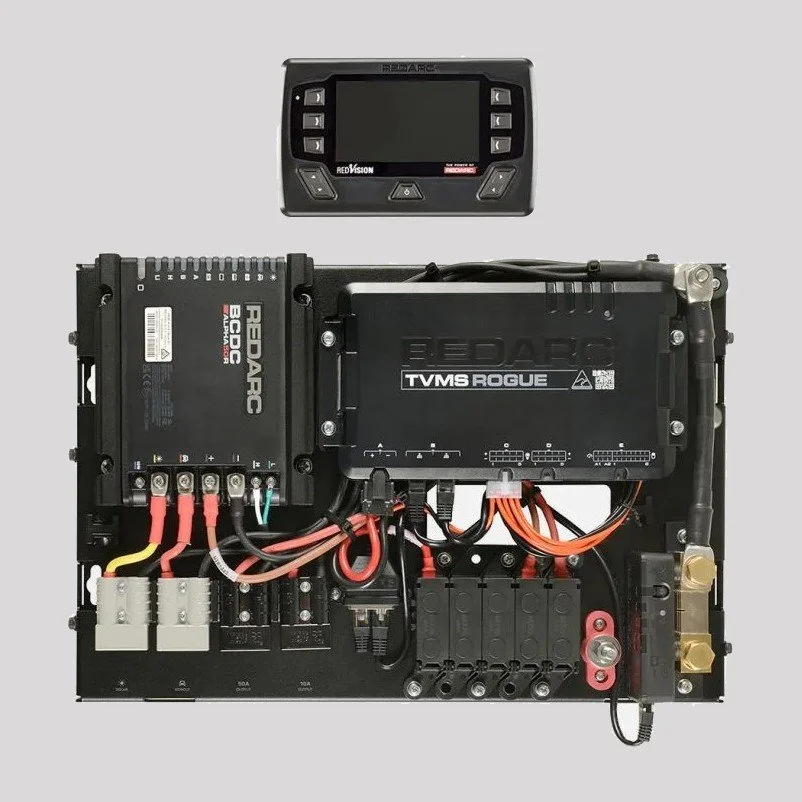

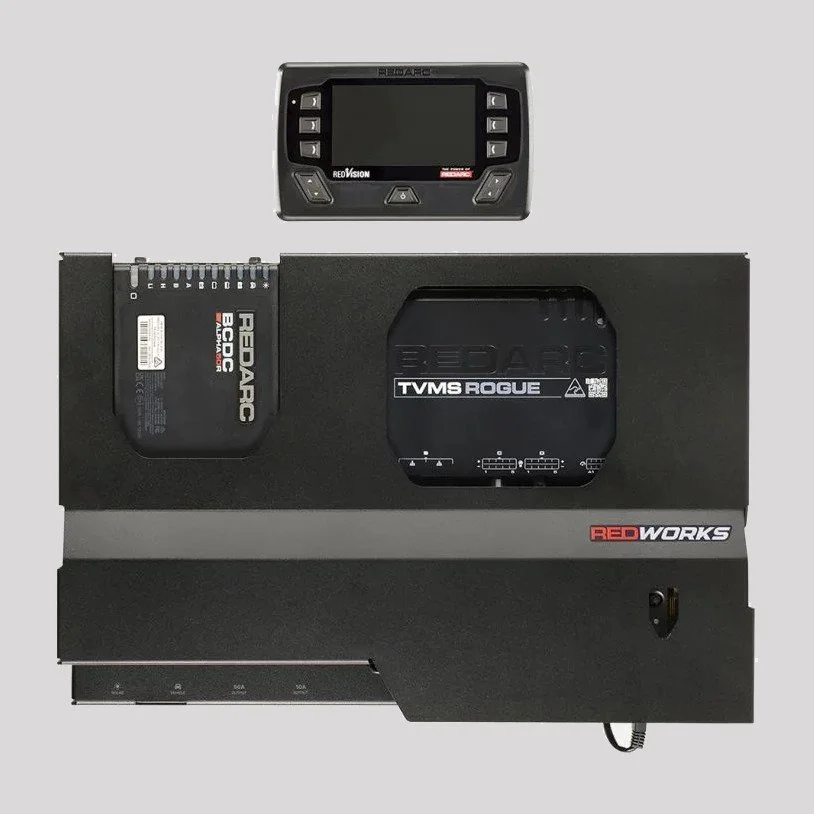

REDWorks Pioneer50 Integrated Dual Battery System
Product Overview
The REDWorks Pioneer50 is an integrated, pre-wired dual battery system with personalised control and advanced monitoring, engineered for travellers who want complete control over their onboard setup.
Whether you are managing creature comforts, lighting, fridges, pumps or a wide range of accessories, Pioneer50 lets you monitor, control and automate your system from your phone or RedVision Pro Display.
Key Highlights
- Integrated pre-wired dual battery system with advanced monitoring
- Includes BCDC Alpha50 R DC Battery Manager
- Includes TVMS Rogue Vehicle Management System

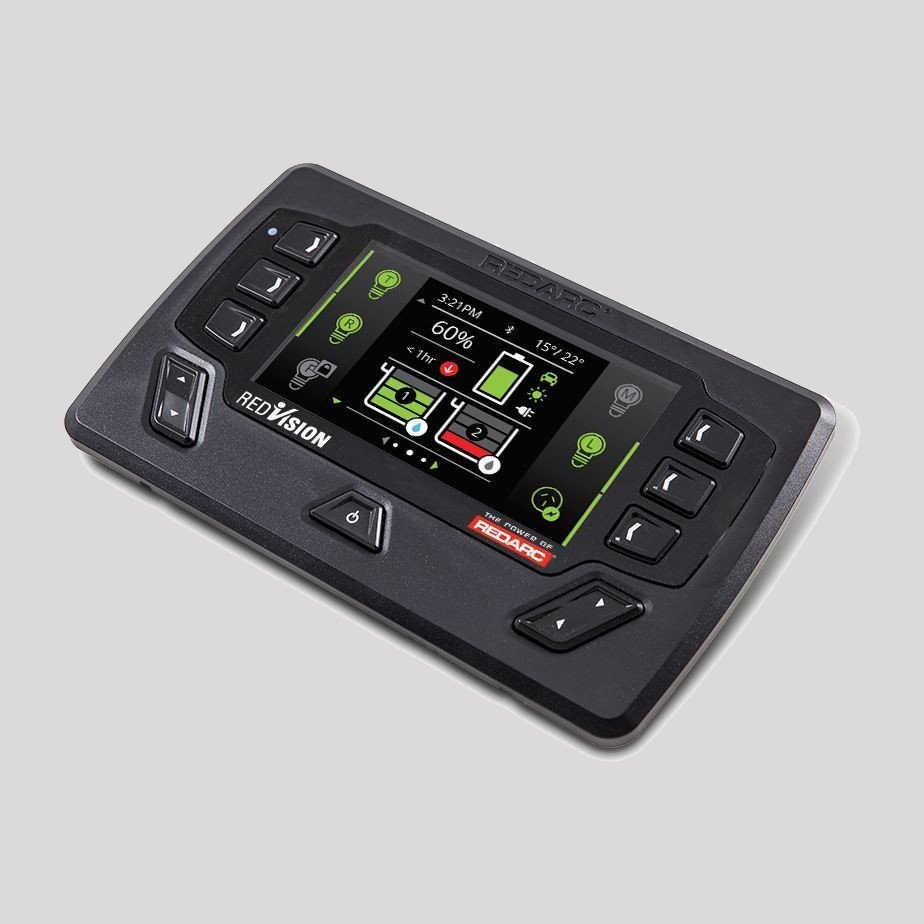

- Includes RedVision Pro Display
- Control onboard devices from your smartphone or RedVision Pro Display
- Programmable icons for simple, personalised device control
- Supports control of up to 10 devices
- Two analogue sensor inputs for expanded system monitoring
- Start Battery Charging and Start Battery Recovery support
- Smart resettable fuses can be reactivated from the display or app
- Charges from alternator and solar simultaneously
- Green Power Priority® prioritises solar input to reduce alternator load
- Compatible with common battery types, including lithium and heated lithium
- Over-the-air updates and input current limiting for future-ready performance
Personalised Control
Design your setup around the way you travel. Programmable, easy-to-understand icons let you control connected devices with a single touch.

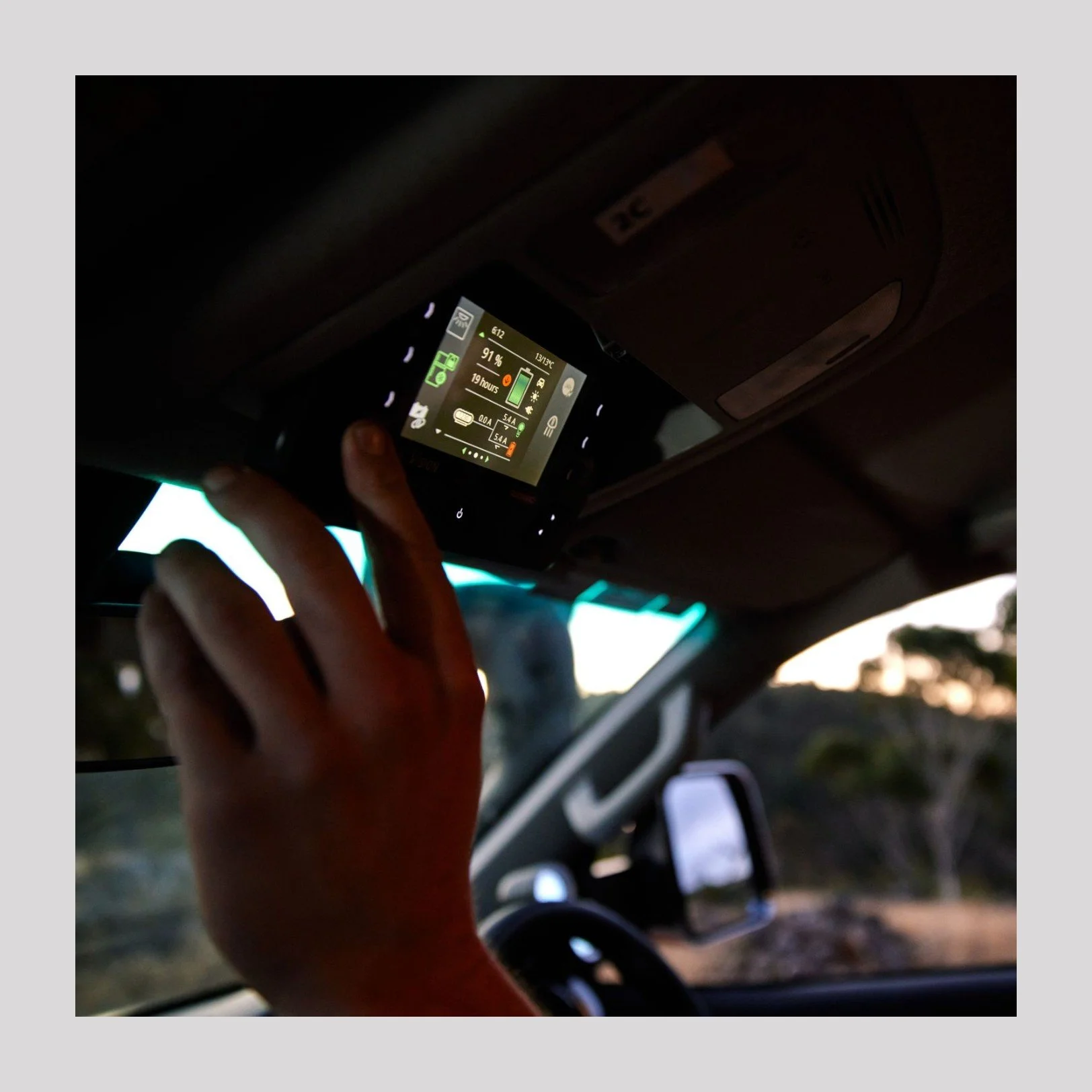

RedVision acts as the central hub for your onboard devices, allowing you to control lights, fridges, water pumps and more from your smartphone or RedVision Pro Display.
Pioneer50 supports control of up to 10 devices, including USB sockets, 12V cigarette sockets, standard fridges, lighting, pumps and awnings.
The TVMS Rogue also includes two analogue sensor inputs, adding more real-time monitoring data through RedVision.
Never Get Stranded
Recover a flat start battery with the push of a button, helping you get back on the road quickly and safely.
The BCDC Alpha50 R uses excess solar to keep your start battery topped up. Start Battery Recovery can recover a flat start battery in just 15 minutes without jumper leads.
The TVMS Rogue’s smart, resettable fuses can be reactivated in seconds through the RedVision Pro Display or app, helping reduce downtime and avoid manual diagnostics.
Ready-to-Go Power

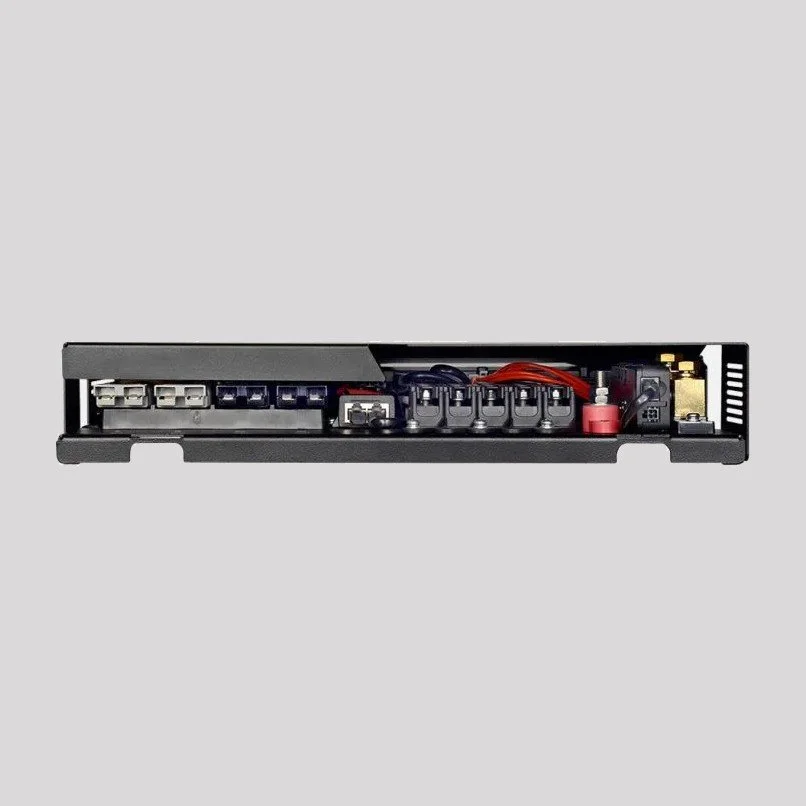

Connect your essentials quickly using easy-access Anderson™ ports. Whether it is a fridge, solar panel or accessory, the system is ready when you are.
With the BCDC Alpha50 R on board, Pioneer50 can use excess solar to automatically top up the start battery once the auxiliary battery is full.
- 10A Anderson™ SB50 output: for low-power devices such as USB sockets, 12V cigarette sockets, standard fridges, lighting, pumps or awnings.
- 50A Anderson™ SB50 output: for high-power devices drawing up to 50A, such as 12V fridges, large compressors or electric jacks.
Charge with Confidence
Pioneer50 keeps you powered and informed with DC and solar charging, supported by real-time battery monitoring for full system visibility.
Charge your secondary battery from solar and alternator inputs simultaneously. Green Power Priority® prioritises solar input for maximum efficiency and reduced alternator load.
Unlike standard DC chargers, the BCDC Alpha50 R adjusts its charge mode in real time to meet the battery’s needs, helping maximise efficiency and extend battery lifespan.
Compatible with common battery types including lithium and heated lithium, Pioneer50 also supports over-the-air updates and input current limiting, making it suitable for hybrid and electric vehicles.
Note: REDARC recommends installation by a qualified auto electrician, technician or approved REDNetwork installer. Use the Find An Installer tool on the REDARC website to locate a suitable installer.
